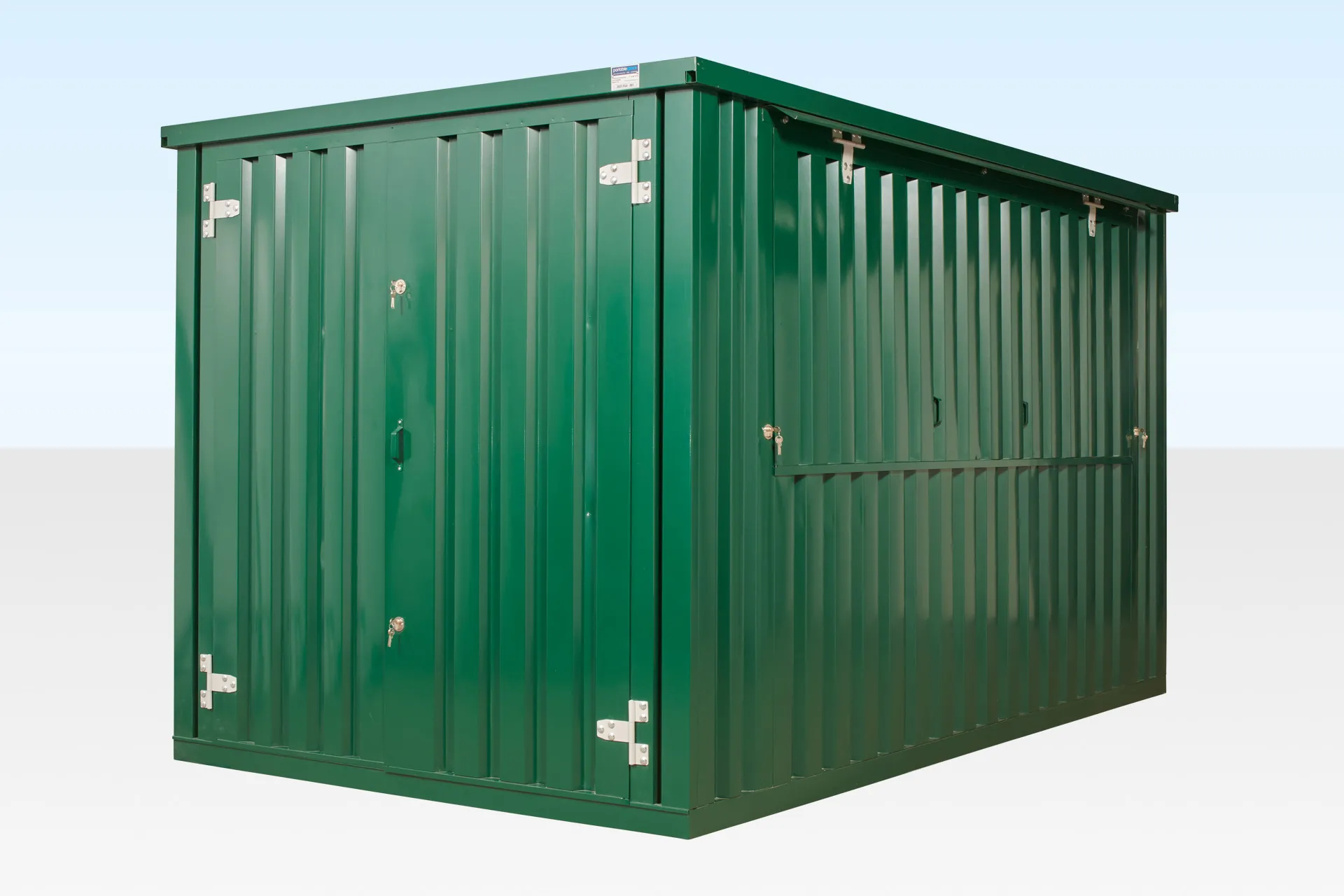

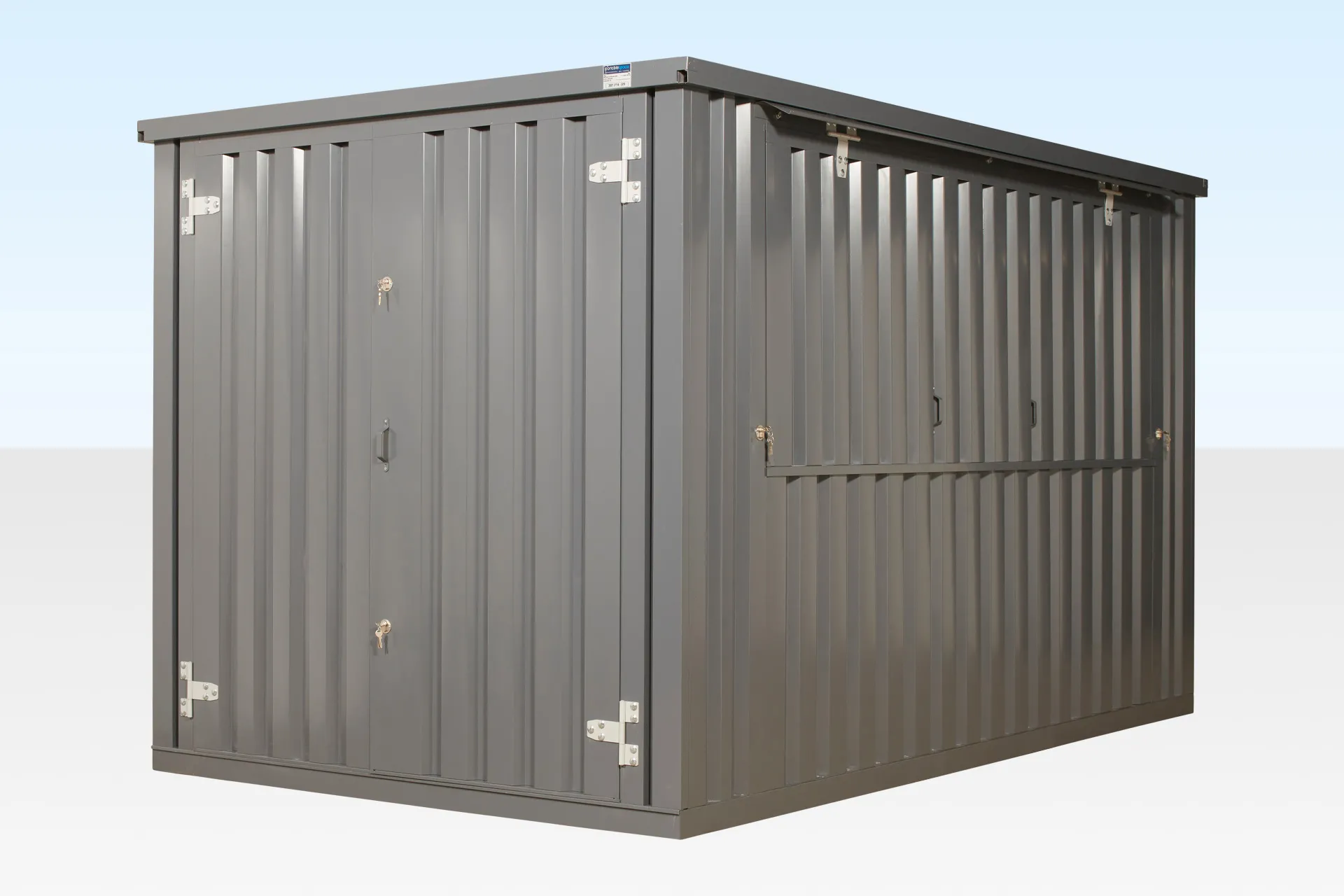

13 ft 1 in Flat Packed Kiosk – Flexible & Man-Portable Serving Unit
The 13 ft 1 in Flat Packed Kiosk is a versatile, man-portable unit designed for temporary or semi-permanent uses. With a side-opening hatch hinged from the top, the kiosk can be set up on either of the long sides to suit your requirements. Each part of the unit is lightweight enough for four people to handle safely, removing the need for expensive crane transport. Small enough to be moved on a car trailer, it’s perfect for events, festivals, and businesses needing flexible serving or retail space. The interior and exterior can also be fitted out or clad for longer-term applications.
Key Features
Fully galvanized body for long-lasting durability

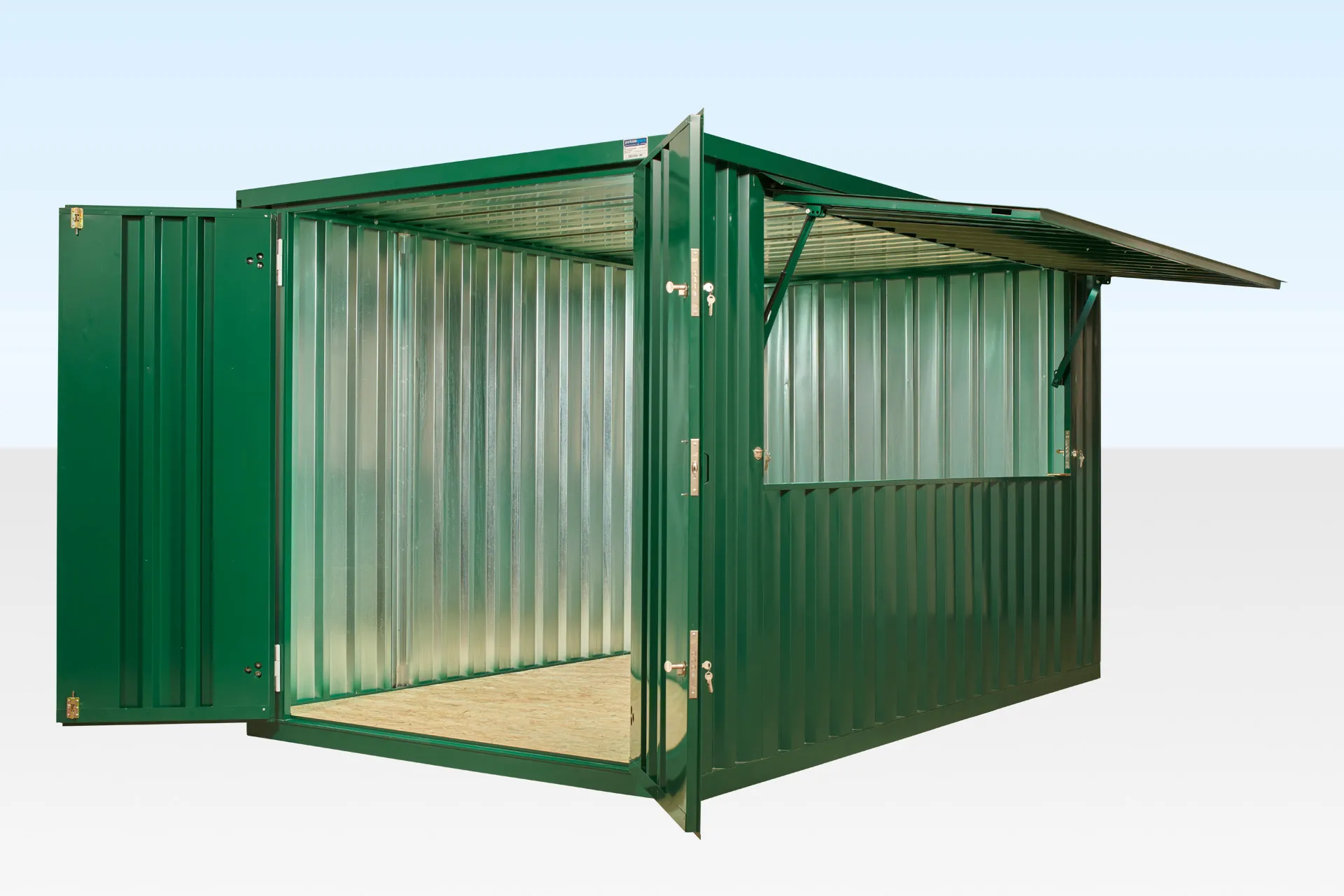

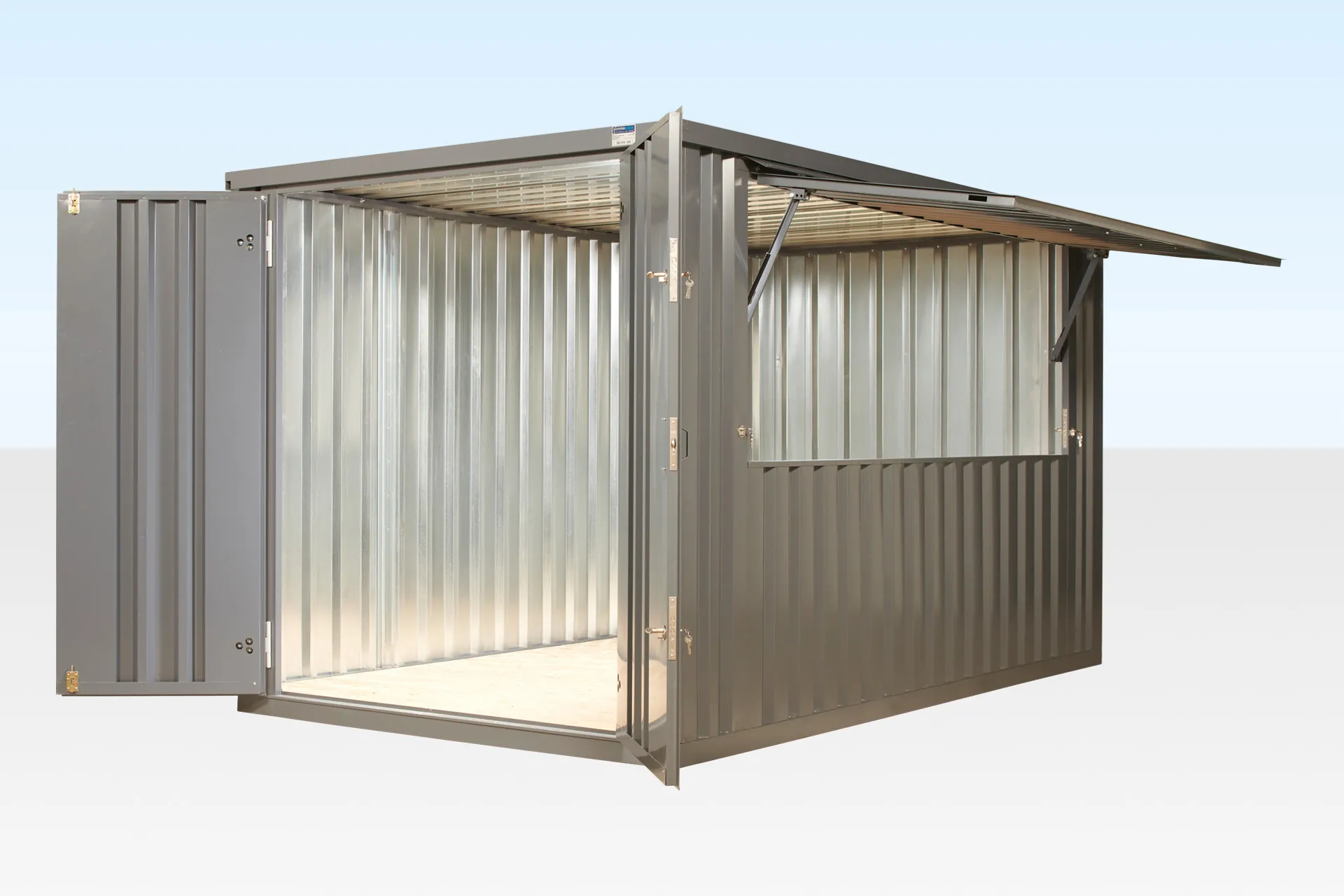

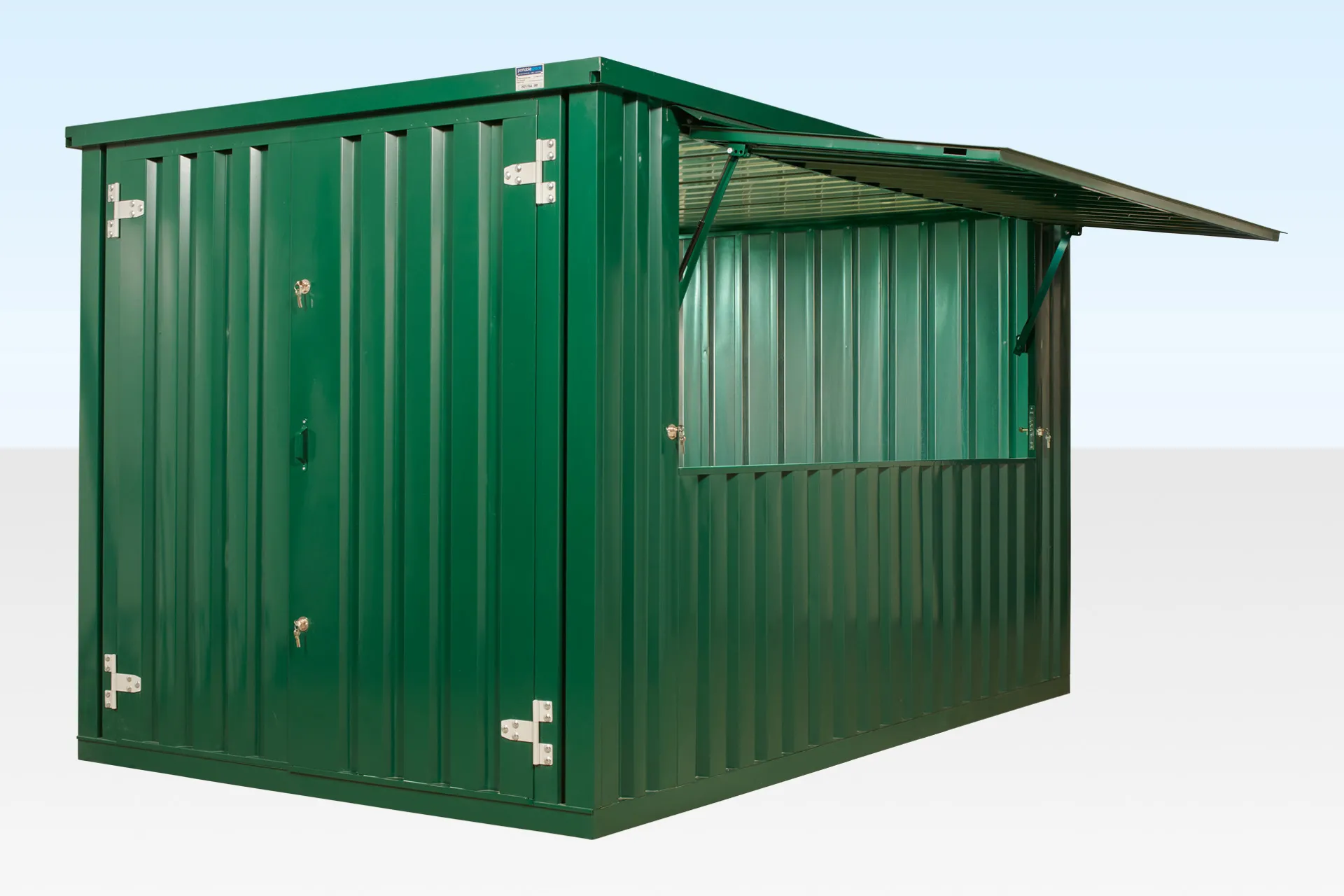

Side-opening hatch, configurable to either long side
Man-portable and easy to assemble
Lightweight parts – can be moved by four strong people
Suitable for loading on a small car trailer
Optional shelving available at additional cost
Available in RAL colors: Cobalt Blue, Bottle Green, Slate Gray
Benefits
Quick and easy setup for temporary or seasonal use
Ideal for areas restricted by low or weak bridges
Works well on poor ground conditions, such as festival sites
Flexible configuration for both interior and exterior use
Reduces costs by eliminating specialist transport requirements
Typical Uses
Outdoor festivals and fairs
Sporting and music events
Temporary business kiosks
Seasonal pop-up retail or food outlets
Promotional or marketing events
PRODUCT SPECIFICATIONS
| External Length | 12 ft 6 in |
|---|---|
| External Base Width | 7 ft 3 in |
| External Roof Width | 7 ft 6 in |
| External Height | 7 ft 5 in |
| Internal Length | 12 ft 2 in |
| Internal Width | 7 ft |
| Internal Height | 6 ft 11 in |

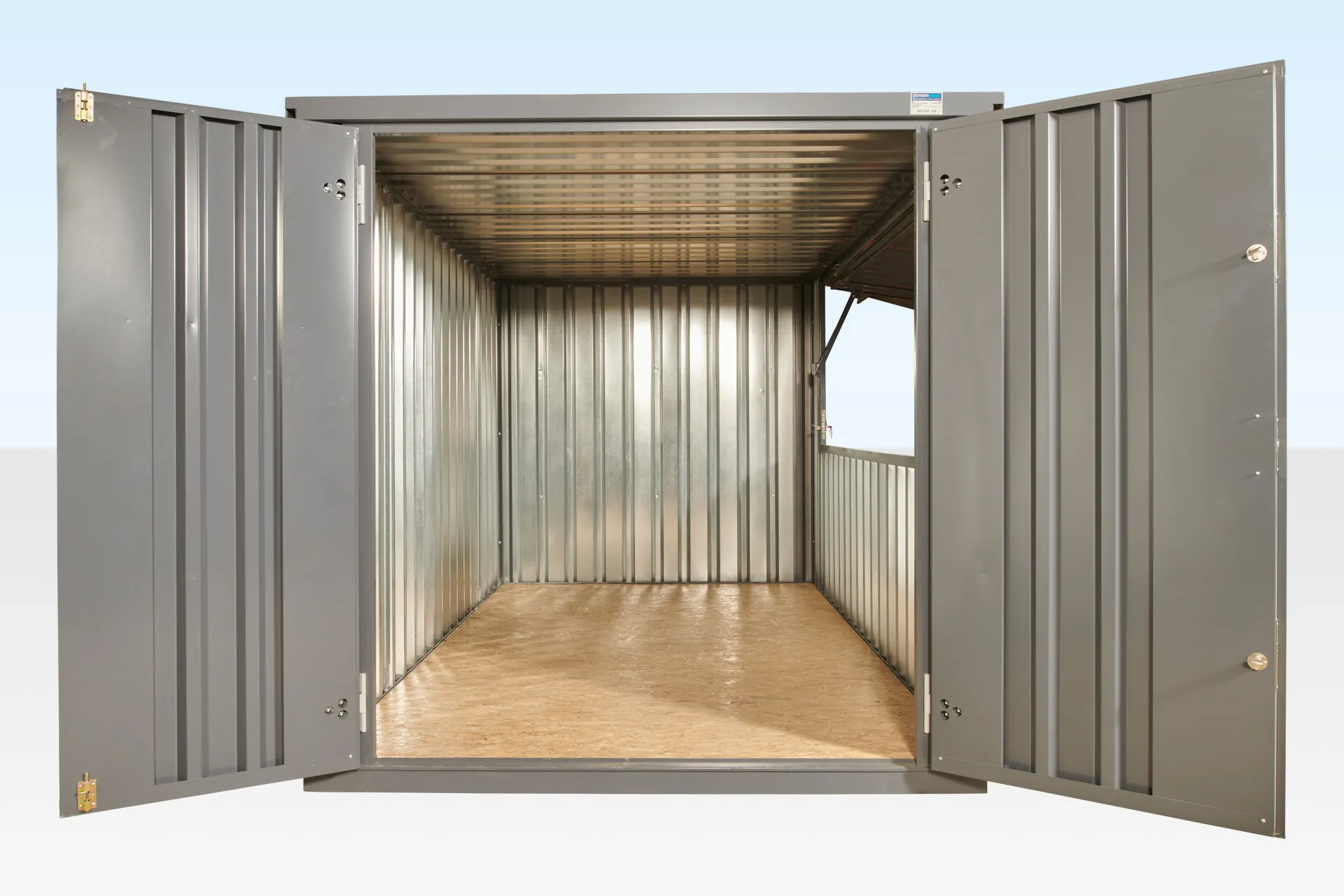

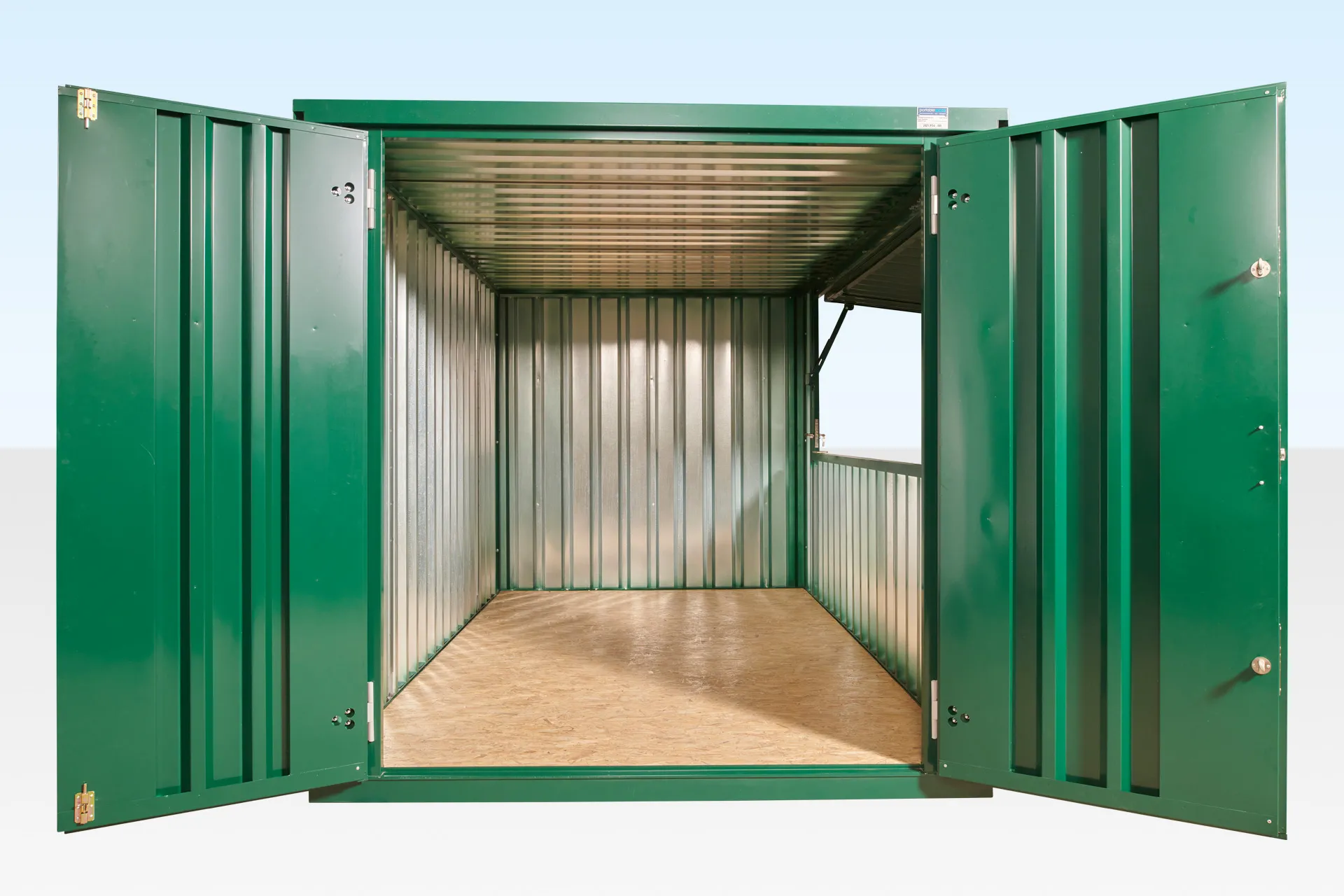

| Door Width | 4 ft 1 in |
| Door Height | 5 ft 11 in |
| Hatch Width | 9 ft 7 in |
| Hatch Height | 3 ft 5 in |
| Max Weight Floor can Withstand | 4,409 lbs spread evenly across the floor |
| Weight (Flatpacked) | 928 lbs |
| Weight Heaviest Part (when Demounted) | 337 lbs |
| Floor Type | 0.59 in OSB Board |
| Internal Floor Covering | OSB Board |
| Internal Wall Covering | Galvanized Steel |
