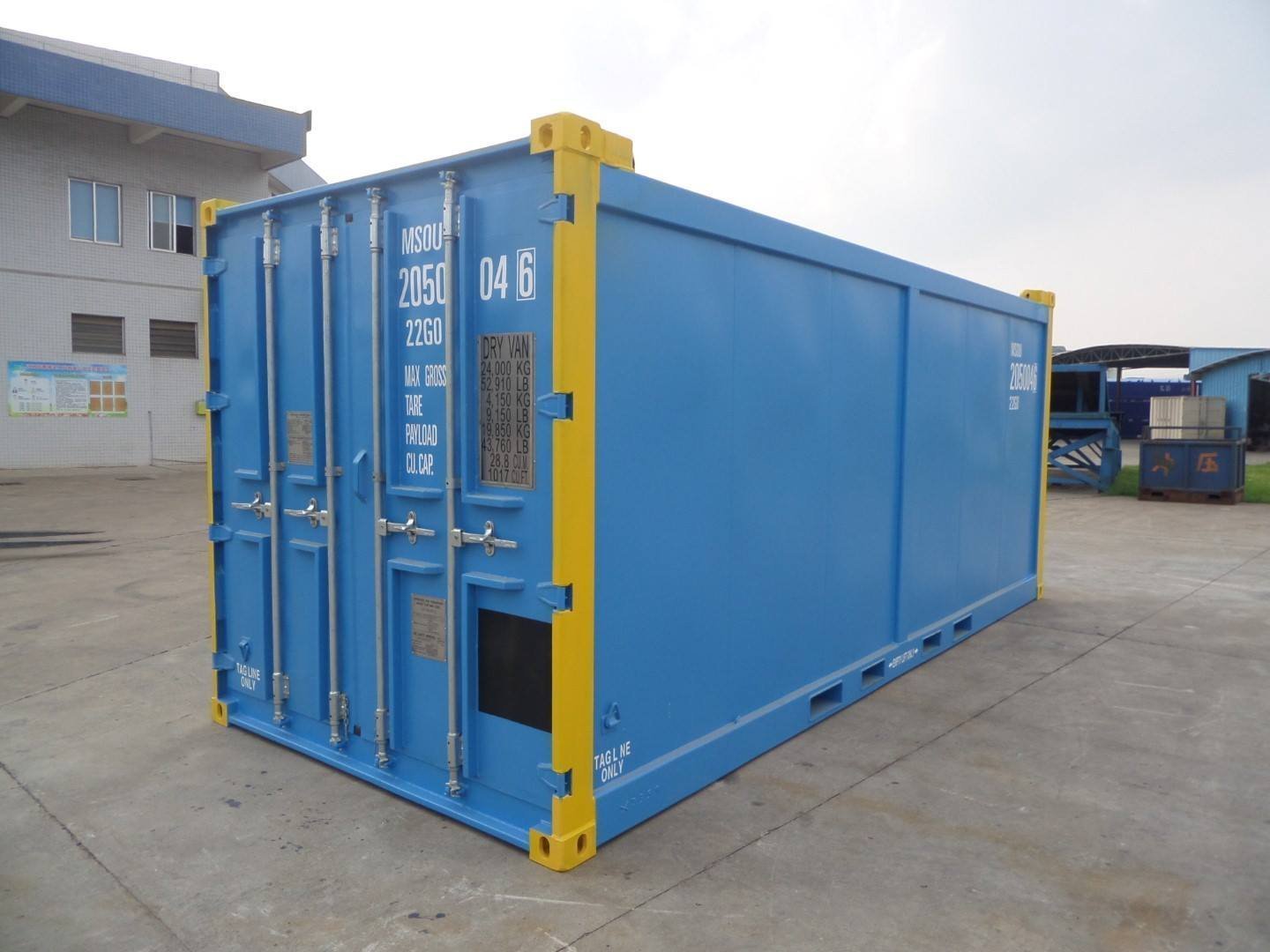

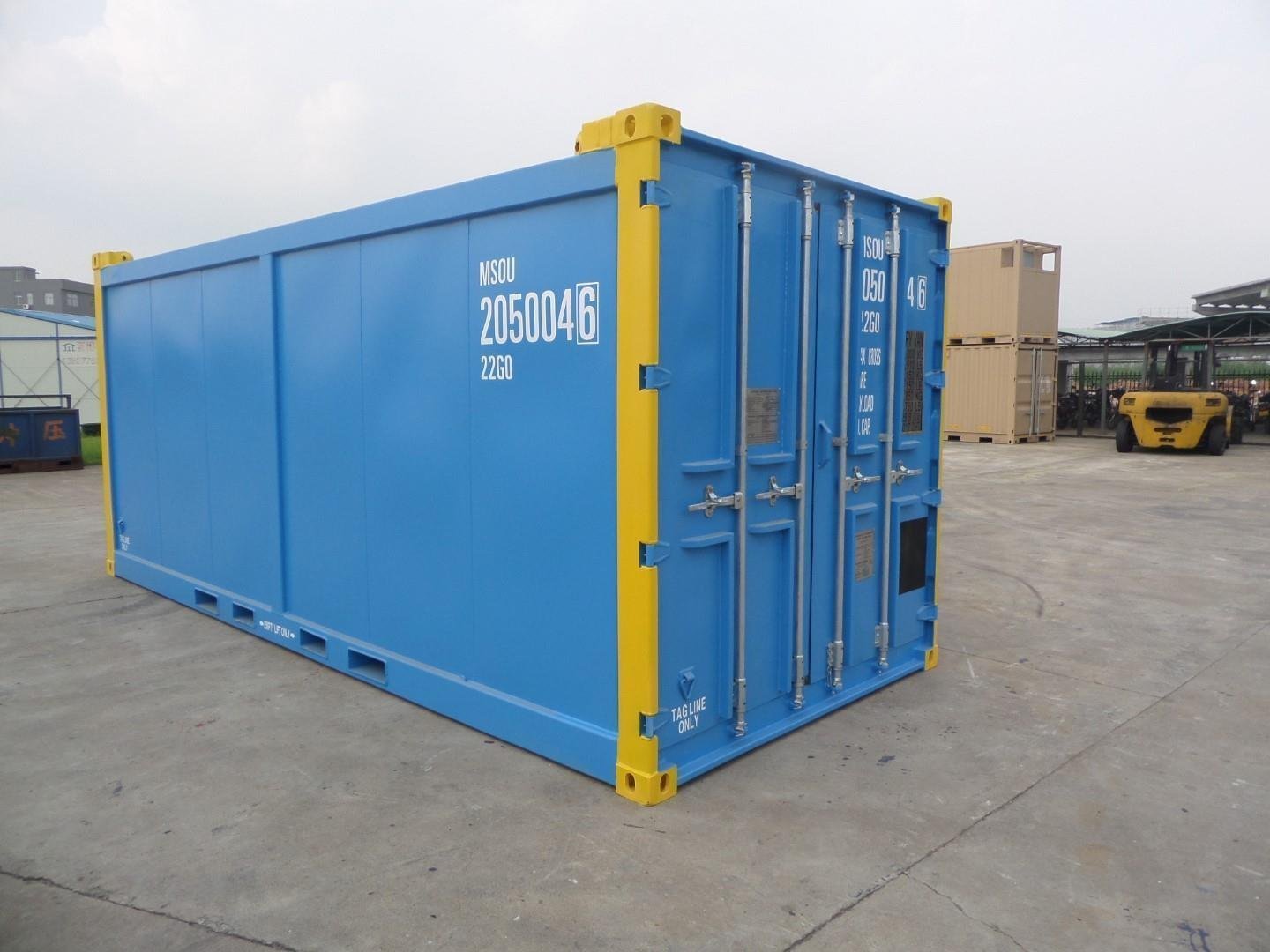

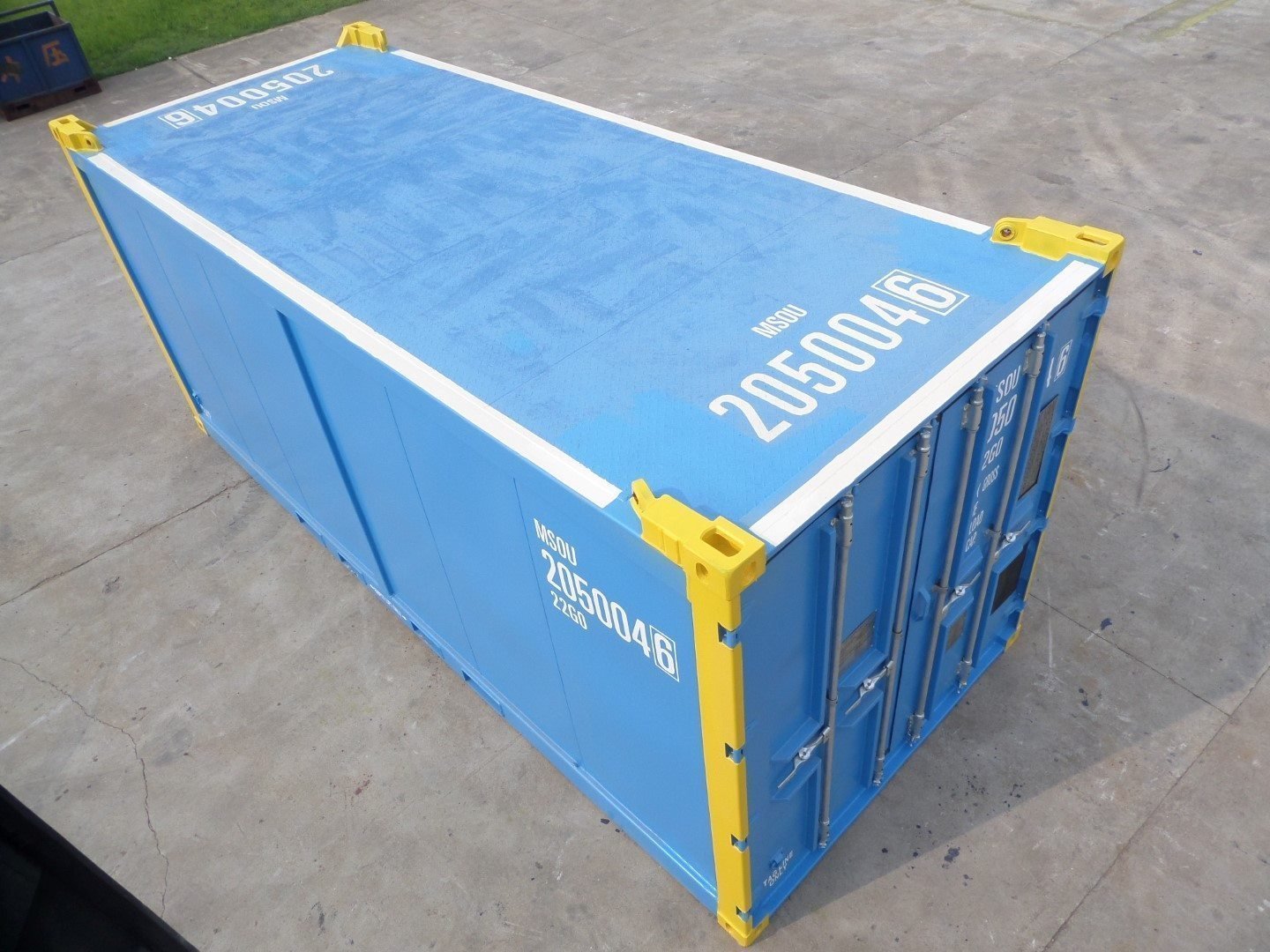

20ft DNV Offshore-Rated Container
20ft DNV Offshore-Rated Container designed for secure transport and storage in marine environments. rated to DNV 2.7-1 standards, this unit is constructed for use on fixed and floating offshore installations .
Key Features
DNV 2.7-1 Certification: Designed, built, and rated to meet the rigorous requirements of DNV 2.7-1, the internationally authoritative standard for offshore containers .
High-Strength Construction: Manufactured with corrosion-resistant steel to withstand harsh weather conditions, salt spray, and the dynamic forces of maritime transport .
rated Lifting Gear: Supplied with DNV-rated lifting slings, allowing for safe and compliant handling in offshore lifting operations .
Stackable Design: Engineered for secure stacking, even with lifting slings attached, optimizing deck space during transport or storage .
CSC Plated: Complies with the International Convention for Safe Containers (CSC), facilitating international transport .
Detailed Description
This 20ft Offshore-Rated Container is a portable unit specifically designed for the repeated transport of goods and equipment to, from, or between offshore installations . Its primary application is found within the oil and gas industry, as well as offshore wind farms, where equipment must endure significant operational demands .
The container’s structural integrity is verified through a comprehensive certification process administered by DNV. This process includes a thorough evaluation of the design details, an audit of the production process, and a final prototype inspection . High-strength steel is utilized for the main structure, with materials selected to prevent brittle fracture and resist corrosion .
Corner castings and lifting points are reinforced and arranged to withstand the specific mechanical stresses encountered during lifts at sea . The design accounts for all critical transportation phases, including delivery from shore, on-board securing, and dynamic lifting environments . Units manufactured after 2018 are designed, built, and rated to meet the requirements of DNV 2.7-1 in conjunction with ISO 10855-1 .

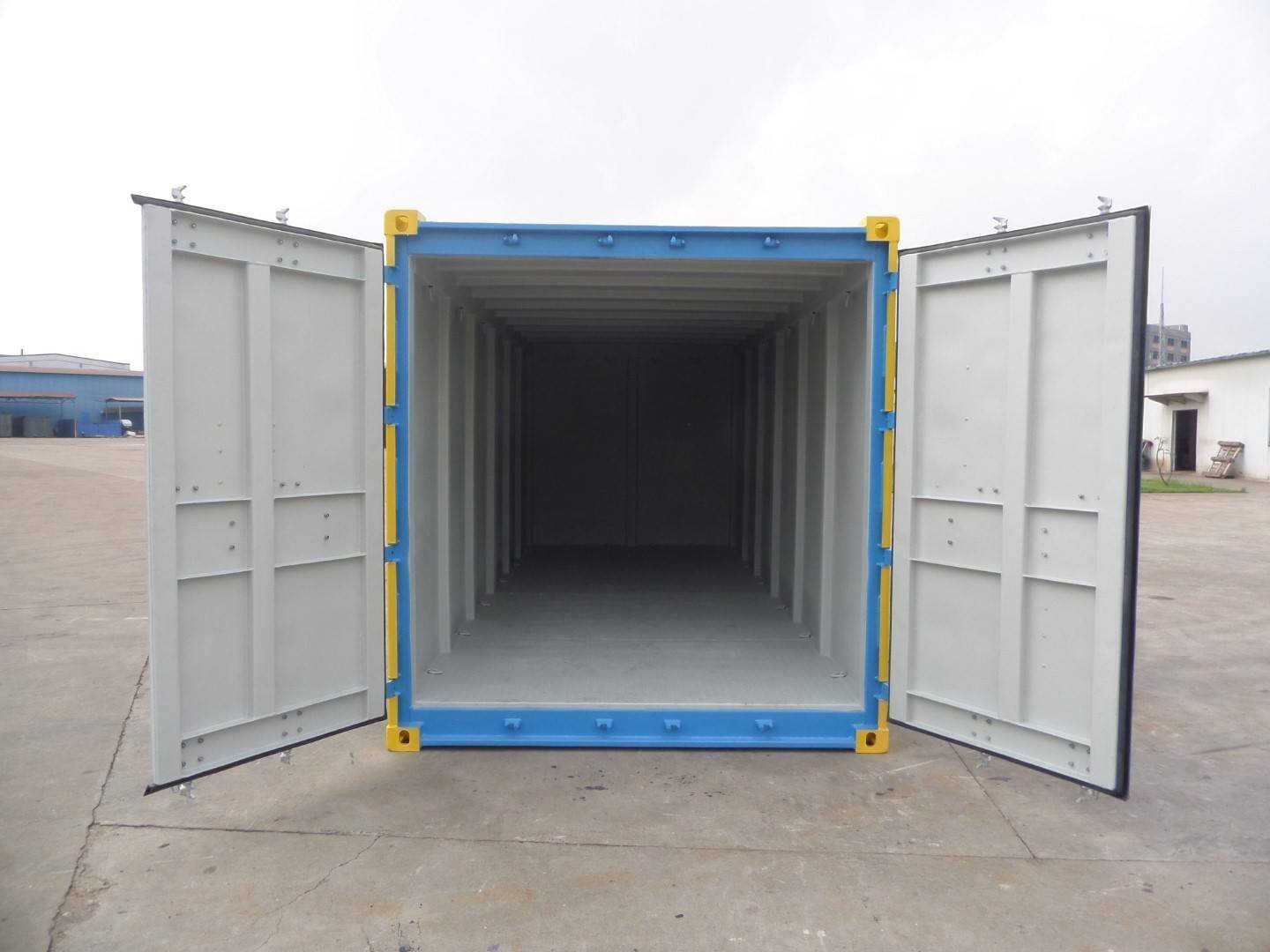

Internal lashing points are provided as a standard feature, enabling the securement of various cargo types within the container . The robust and proven design ensures reliable performance and longevity in demanding settings .
Technical Specifications
| Specification | Imperial | Metric |
|---|---|---|
| External Nominal Dimensions (L x W x H) | 20′ x 8′ x 8’6″ | 19 ft 11 in x 8 ft x 8 ft 6 in |
| Internal Dimensions (L x W x H) | Approx. 19’3″ x 7’7″ x 7’3″ | Approx. 19 ft 4 in x 7 ft 8 in x 7 ft 3 in |
| Internal Cubic Capacity | Approx. 1,080 ft³ | Approx. 1,081 cu ft |
| Maximum Gross Weight (Offshore) | 44,090 lbs | 44,092 lbs |
| Tare Weight | Approx. 8,490 lbs | Approx. 8,488 lbs |
| Max Payload (Offshore) | Approx. 35,600 lbs | Approx. 35,605 lbs |
| Classification | DNV 2.7-1 / ISO 10855-1 (post-2018) |
Note: Specifications are based on standard 20ft DNV container configurations and may vary. Always refer to the container’s data plate for exact measurements and weights.
Intended Use
This container is intended for the storage and transport of general cargo, equipment, and supplies in offshore environments. It is suitable for use on offshore supply vessels, oil rigs, platforms, and floating production storage and offloading (FPSO) vessels. It provides a secure, weather-resistant solution for moving essential materials to and from marine installations .
Package Includes
1 x 20ft DNV Offshore-Rated Container
1 x Set of DNV-rated Lifting Slings
