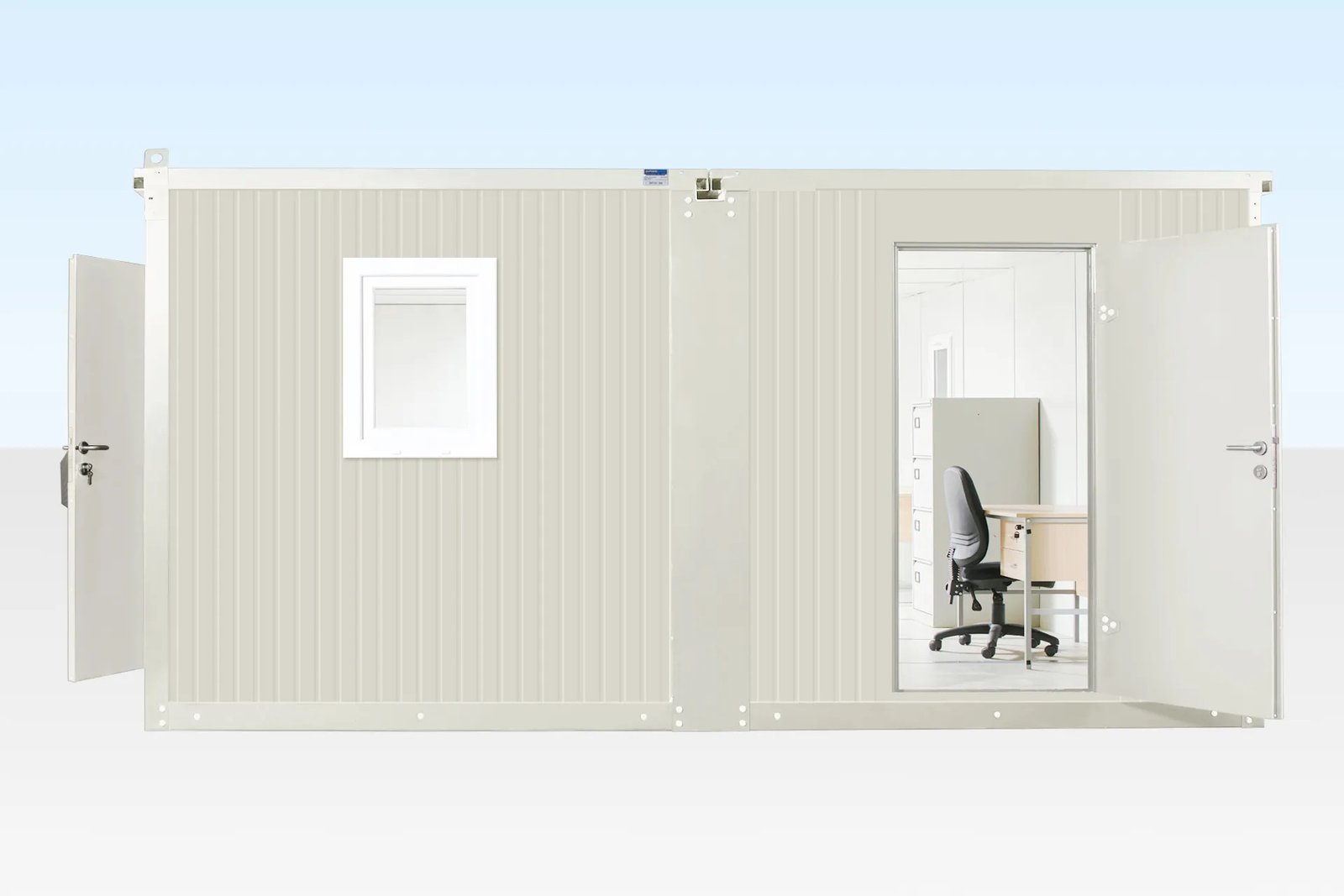

PRODUCT DETAILS For 21 ft 4 in x 15 ft 1 in Side Linked Flat Pack Container Office
Our 21 ft 4 in x 15 ft 1 in Side Linked Flat Pack Container Office is created by linking two of our 21 ft 4 in office cabins side by side.
This bundle includes:
- 2no. 21 ft 4 in x 7 ft 7 in flat pack offices (gray white)
- 1no. 21 ft 4 in side linking kit
When you have limited access to deliver portable accommodation our flat pack office range provides the perfect solution. It enables users to move all the components by hand to the required erection area which can even be inside buildings or multi-story car parks. This can save significant delivery costs – such as large mobile cranes, trackway or skating teams.

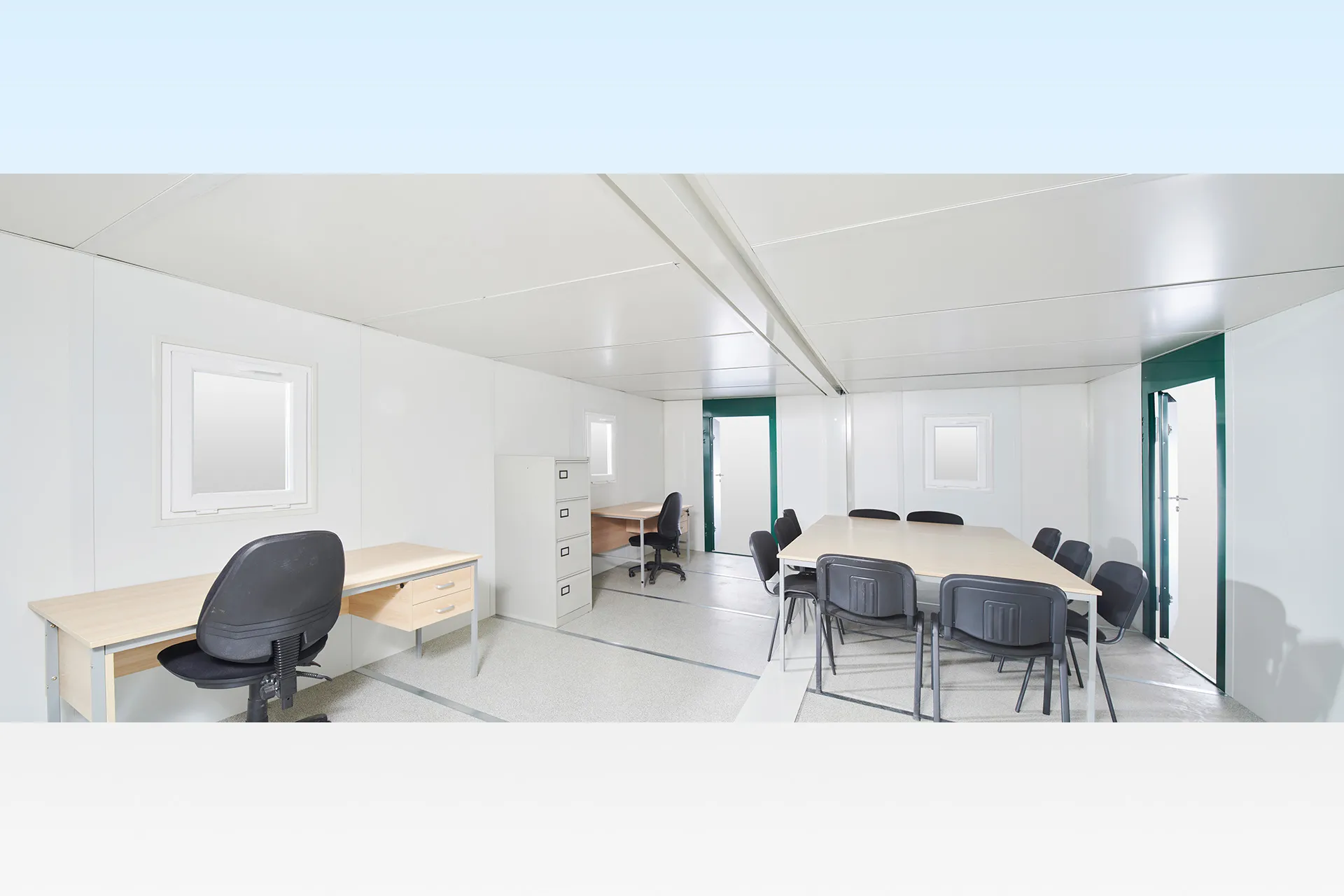

This side linked bundle offers two of our large 21 ft 4 in cabins joined with the side linking kit creating an open space to accommodate larger teams or for other uses such as points of access, entry testing or control (for example signing in areas, health and safety documents, or covid test information etc).
With the 21 ft 4 in x 15 ft 1 in side linked cabin you have the choice to use one or both pedestrian doors. If you choose to use both doors these can be installed on any two of the four sides to give maximum on-site flexibility. This is especially useful when you are using the units to manage the movement of people within your workplace. You can even move the doors at a later time, or relocate the whole building as the project or requirements change and evolve.
PRODUCT SPECIFICATIONS For 21 ft 4 in x 15 ft 1 in Side Linked Flat Pack Container Office
| External Length | 21 ft 4 in |
|---|---|
| External Width | 15 ft 2 in |
| External Height | 7 ft 9 in |
| Internal Length | 19 ft 4 in |
| Internal Width | 14 ft 4 in |
| Internal Height | 7 ft 1 in |
| Door Width | 2 ft 7 in |
| Door Height | 6 ft 6 in |
| Height (Flatpacked) | 17.7 in |
| Length (Flatpacked) | 21 ft 4 in |
| Width (Flatpacked) | 7 ft 7 in |
| No. of Windows | 4 |
| Weight (Flatpacked) | 5,732 lbs |
| Weight Heaviest Part (when Demounted) | 163 lbs |
| Floor Type | 0.71 in Marine Plywood |
| Floor Loading | 551 lbs/m2 evenly distributed |
| Internal Floor Covering | 0.08 in PVC Linoleum (flash point B1 difficult to burn, smoke density Q1) |
| Internal Wall Covering | 0.02 in galvanized steel electrostatic powder coated in RAL9002 |
| Insulation | 2 in EPS insulation |
| Electrical Requirements. (Amps) | 32amp |
